WX99a · Certification — Marine Weather Part 2 (Map Reading)
14 questions · 4 multiple choice · 10 written · ASA 109 Marine Weather — Final Certification (Part 2). Every question references the Pacific Surface Analysis map below.
0 of 14 answered
AI queries on this quiz: 0 · ≈ $0.00
MC: click A/B/C/D. Written: type, then reveal the reference / grade / ask Claude. Click × on any panel to hide it (your work stays saved). Use Show answers above to reveal everything at once.

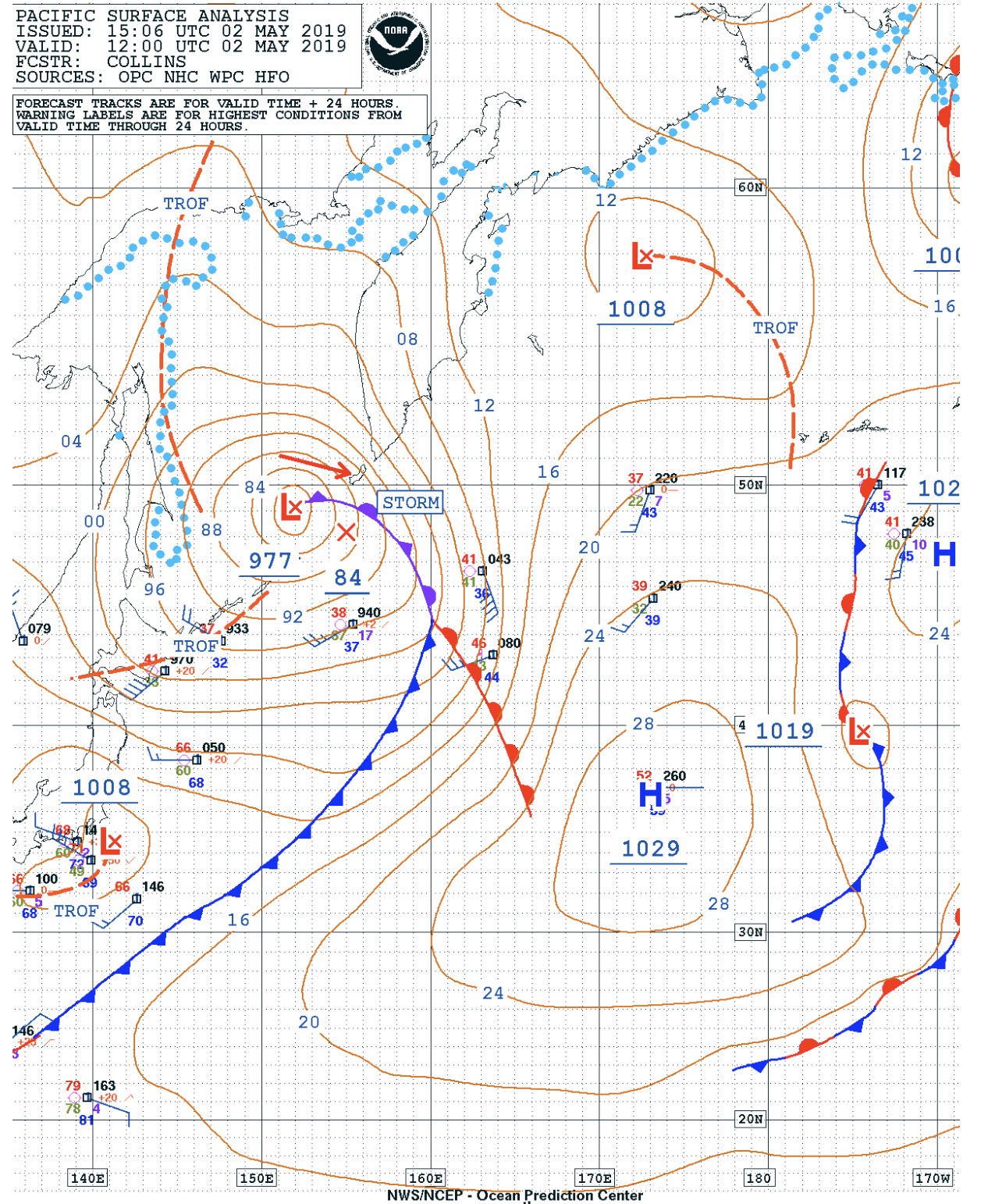

📈 Pacific Surface Analysis · OPC · 12:00z 02 May 2019
NWS/NCEP Ocean Prediction Center surface analysis. Click to expand. All questions below reference this map.
Q1
What is the peak central pressure of the High at 36N, 174E?
(no reference answer stored — use Grade or Ask AI)
AI grading
AI answer
Q2
There is a ship report in the middle of that high. What pressure is it reporting?
(no reference answer stored — use Grade or Ask AI)
AI grading
AI answer
Q3
What type of front runs from 49N, 153E to 44N, 160E?
(no stored answer — AI will propose one)
AI answer
Q4
What type of front runs from 27N, 140E to 44N, 160E?
(no stored answer — AI will propose one)
AI answer
Q5
What type of front runs from 44N, 160E to 36N, 166E?
(no stored answer — AI will propose one)
AI answer
Q6
What type of front runs from 40N to 50N at 175W?
(no stored answer — AI will propose one)
AI answer
Q7
What is the reported wind speed and direction at 50N, 173E? (Be as specific as possible.)
(no reference answer stored — use Grade or Ask AI)
AI grading
AI answer
Q8
(A) What is the reported pressure at 50N, 173E?
(B) Does this agree with the isobars shown?
(no reference answer stored — use Grade or Ask AI)
AI grading
AI answer
Q9
What is the pressure at 39.4N, 160E?
(no reference answer stored — use Grade or Ask AI)
AI grading
AI answer
Q10
What is the expected wind speed at 39.4N, 160E?
(no reference answer stored — use Grade or Ask AI)
AI grading
AI answer
Q11
What is the expected wind direction at 39.4N, 160E?
(no reference answer stored — use Grade or Ask AI)
AI grading
AI answer
Q12
There is a Low at 49N, 152E. What is the central pressure of that Low expected to be after 24 hr?
(no reference answer stored — use Grade or Ask AI)
AI grading
AI answer
Q13
How fast is the low at 49N, 152E moving?
(no reference answer stored — use Grade or Ask AI)
AI grading
AI answer
Q14
There is a ship report at 21N, 140E. List all the information you can that this report is providing.
💡 Show hint
See Section 7.7; there are 10 separate pieces of information shown.
(no reference answer stored — use Grade or Ask AI)
