WX0503 · Waves, Clouds & Fog
15 questions · 12 multiple choice · 3 written · ASA 109 Marine Weather — Waves, Clouds & Fog
💡 Show hint
Here we mean not a lot of whitecaps, but just a few if you look carefully.
In still water the answer would be about 10 knots. With current running with the wind, 12 knots would be the better estimate. With current against the wind, first whitecaps at about 8 knots. To use this estimate most accurately, one must account for the current.
AI answer
About one day. We use the estimate that for winds less than 30 kts the time is about half the speed in hours and for 30+ it is the speed in hours, so one day (24h) is the closest.
AI answer
They get steeper. In terms of energy conservation: as they slow down they lose kinetic energy and build up potential energy by getting higher.
AI answer
This is the definition of significant wave height.
AI answer
Use the sum of squares rule: 6×6 + 8×8 = h×h, so h = 10, or solve by drawing a right triangle.
AI answer
Trade wind waves. The wind speed is given as 17 kts, so the only other factors are fetch and duration, and of all listed the trades have the biggest opportunity here.
AI answer
💡 Show hint
Assume we know the wind speed from our anemometer, what have we learned that tells us what waves we should have for that wind and what does it mean if we do not see those waves?
The Beaufort scale is the system that links sea state to wind speed. When this system is known and the seas do not match the waves, then the cause is usually current.
AI answer
💡 Show hint

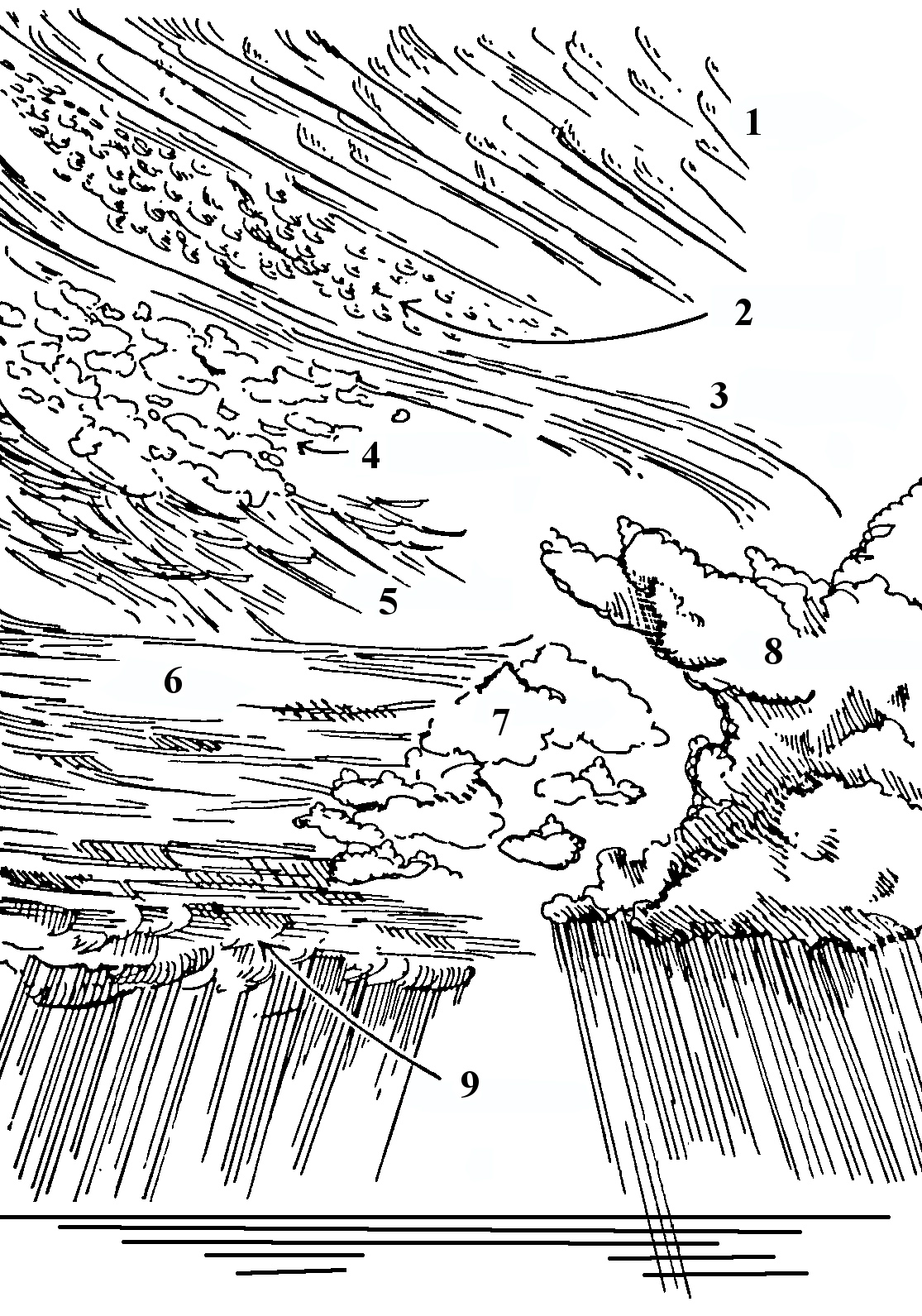

The pictures are very schematic, but your knowledge of the cloud definitions (shape and height) should overcome this. See the figure at Figure 1.
Reference answer
AI grading
AI answer
💡 Show hint
See previous hint.
Reference answer
AI grading
AI answer
💡 Show hint
See the figure at Figure 1.
Reference answer
AI grading
AI answer
Stratiform clouds, layered because there is no vertical motion which is characteristic of unstable air.
AI answer
North-northeast. Higher winds near the clouds are veered relative to the surface as there is less friction there.
AI answer
High Pressure. The sinking air occurring in Highs tends to evaporate clouds and produce clear skies.
AI answer
💡 Show hint
To get this fog there must be a clear sky overnight and very little or no wind.
High pressure means clear skies so the temperature can drop over night to form fog (no cloud blanket to keep the surface warm). The value of dew point does not matter since it is always relative to the temp.
AI answer
Whether or not it is sea fog or radiation fog. The latter will burn off; the former is less likely to.
