WX0204 · Reading Isobar Maps

12 questions · 12 multiple choice · 0 written · ASA 109 Marine Weather — Reading Isobar Maps

← all quizzes · topic: ASA 109 · WX0204

0 of 12 answered
AI queries on this quiz: 0 · ≈ $0.00
MC: click A/B/C/D. Written: type an answer, then reveal the reference, grade, or ask Claude. Answers stay hidden by default — use Show answers to reveal all at once. AI responses are saved in your browser.

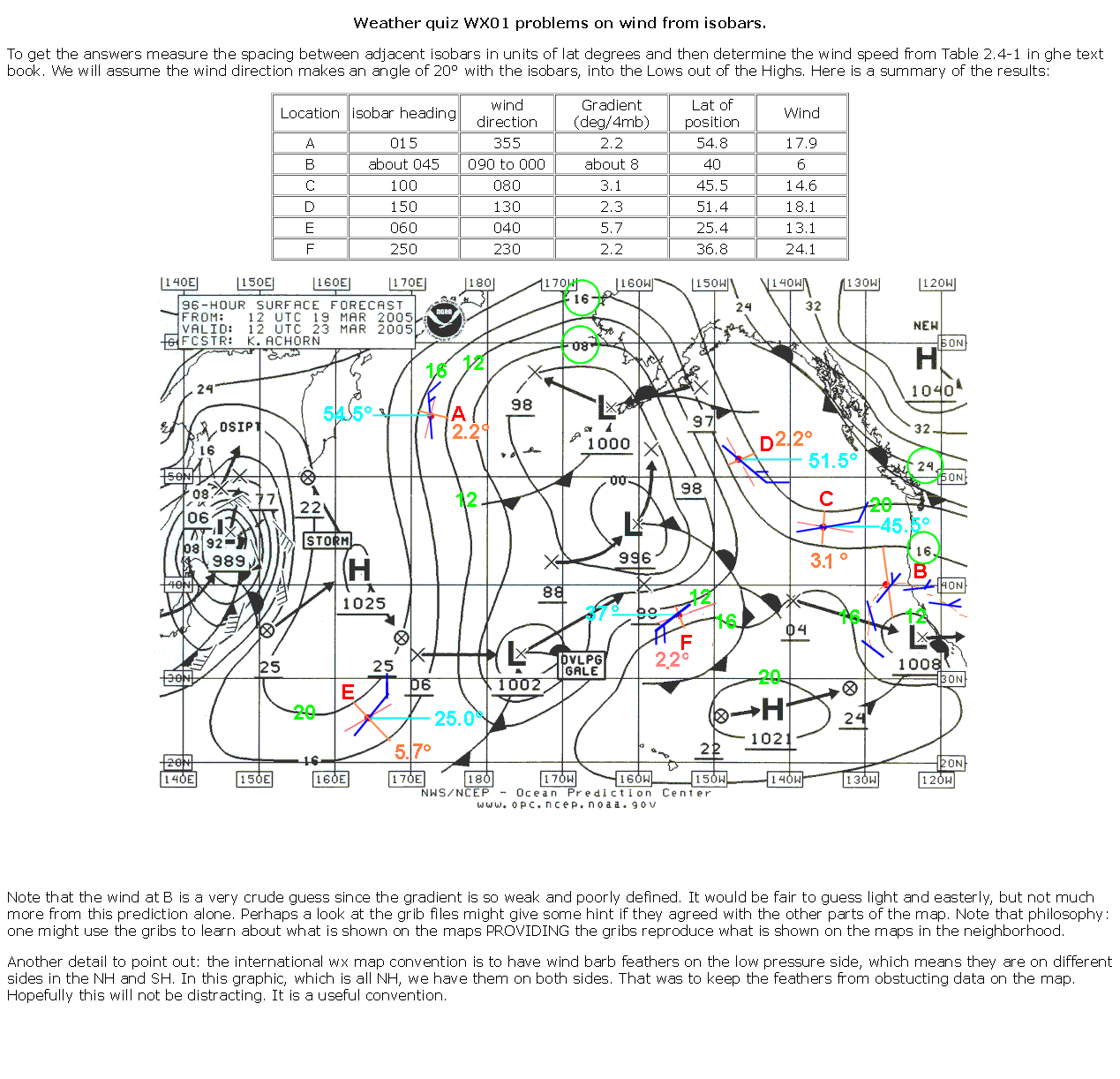

📈 Figure wx01-1 & Solutions Figure wx01-1 & Solutions

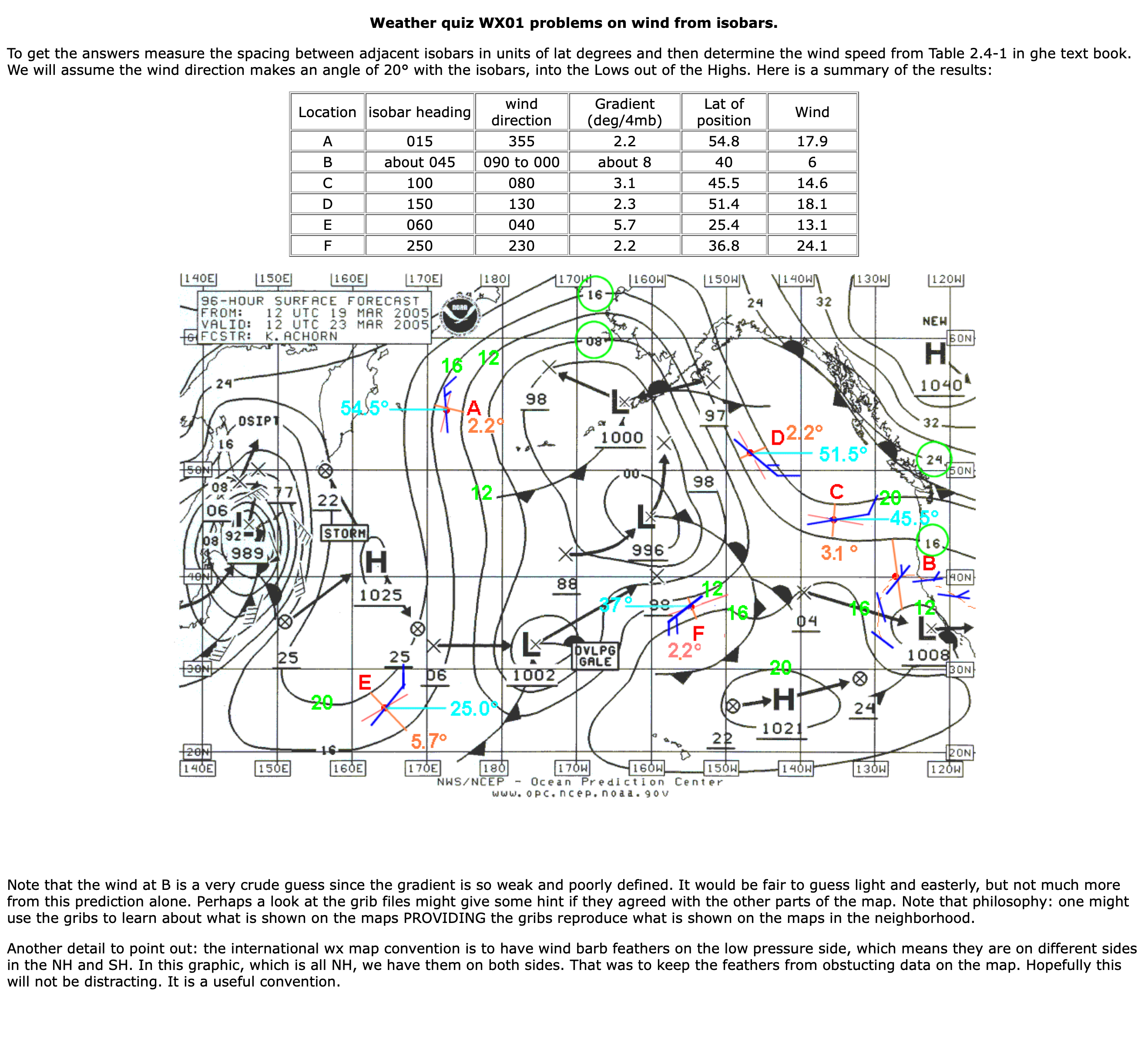

📈 Solutions to WX01 / WX0204 Solutions to WX01 / WX0204
Q1
According to the 96-hr forecast shown in figure wx01-1, what is the predicted wind direction at location A?
Q2
According to the 96-hr forecast shown in figure wx01-1, what is the predicted wind direction at location B?
Q3
According to the 96-hr forecast shown in figure wx01-1, what is the predicted wind direction at location C?
Q4
According to the 96-hr forecast shown in figure wx01-1, what is the predicted wind direction at location D?
Q5
According to the 96-hr forecast shown in figure wx01-1, what is the predicted wind direction at location E?
Q6
According to the 96-hr forecast shown in figure wx01-1, what is the predicted wind direction at location F?
Q7
According to the 96-hr forecast shown in figure wx01-1, what is the approximate predicted wind speed at location A?
Q8
According to the 96-hr forecast shown in figure wx01-1, what is the approximate predicted wind speed at location B?
Q9
According to the 96-hr forecast shown in figure wx01-1, what is the approximate predicted wind speed at location C?
Q10
According to the 96-hr forecast shown in figure wx01-1, what is the approximate predicted wind speed at location D?
Q11
According to the 96-hr forecast shown in figure wx01-1, what is the approximate predicted wind speed at location E?
Q12
According to the 96-hr forecast shown in figure wx01-1, what is the approximate predicted wind speed at location F?
